Reference: 01-0042-019-0119

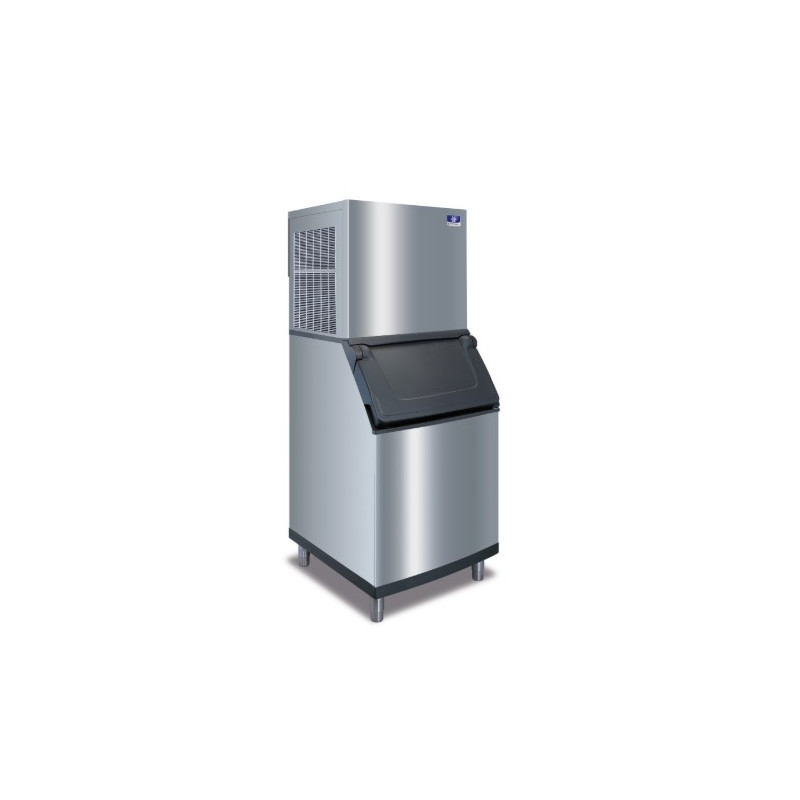

Manitowoc- RFK1300AZ+D570 - Ice Flaker Maker With Storage Bin 195 kg

63,825
Low stock
Free shipping
ekuep fulfilled
Ekuep verified seller
Qty

Extra Services

Get A Price Match

+ 5% Store Credit

Delivery to by 27 Oct 26 - 01 Nov 26

Change city
Description

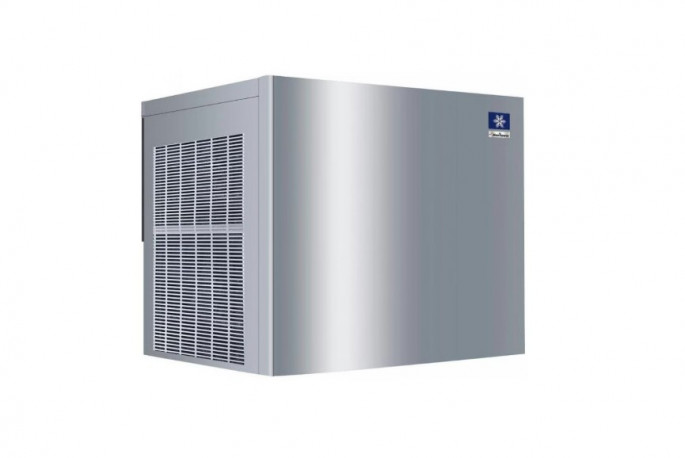

Air-Cooled Flake Ice Machine producing up to 590 kg daily, paired with a 195 kg capacity storage bin. Ideal for restaurants, hotels, hospitals, and seafood establishments with heavy, continuous ice consumption.



Features:

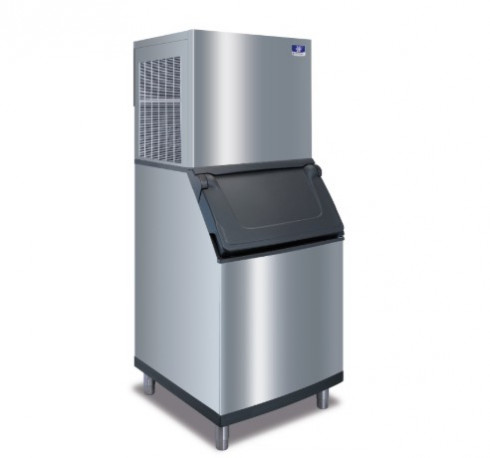

  • Ice maker and storage bin — complete, ready-to-install system.
  • Self-contained air-cooled refrigeration.
  • Rounded internal surfaces for easy cleaning.
  • High-load, maintenance-free bearings for enhanced reliability.
  • Service updates simplify installation and speed up cleaning.
  • Flake ice is ideal for food display, salad bars, and medical cold therapy.
  • Ice forms around the product without bruising or spilling.
  • Heavy-duty, corrosion-resistant stainless steel cabinet.

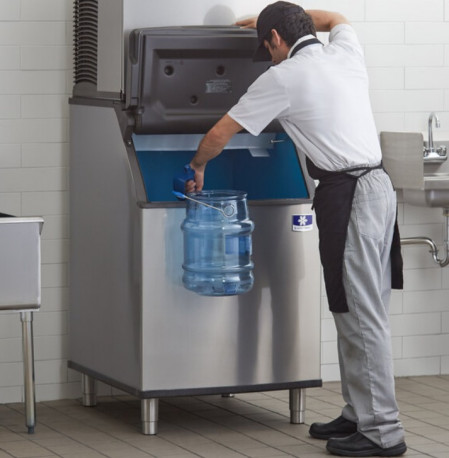

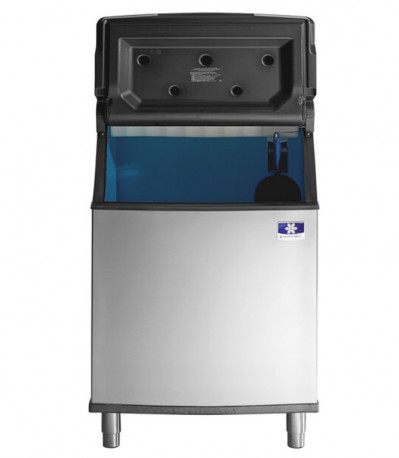

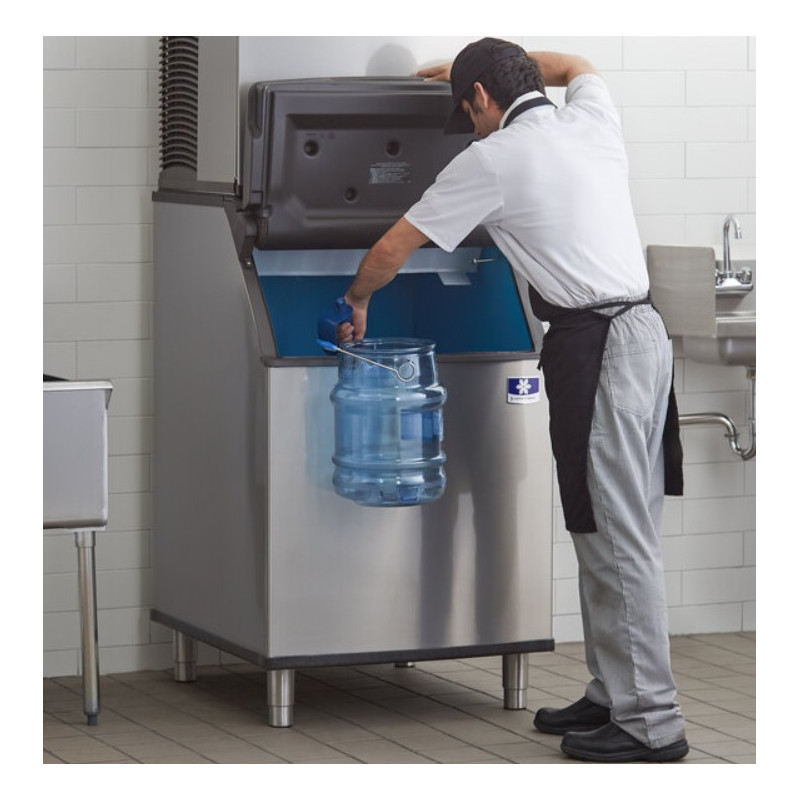

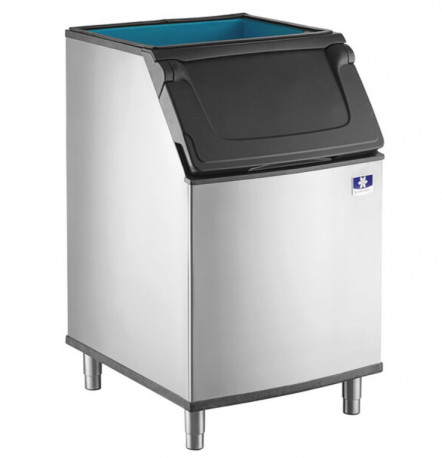

  • Foam-insulated bin door with self-latching lock for safe, secure scooping.
  • Side grips allow the door to be lifted one-handed from any position.
  • NSF-approved sanitary ice scoop included, with hand guard.



Technical Specifications:

  • Width: 762 mm.
  • Depth: 864 mm.
  • Height: 1966 mm.
  • Ice Type: Flake.
  • Weight: 165–177 kg.
  • Current: 16 amps.
  • Power: 1400 W.
  • Daily Ice Production: 590 kg / 24 hrs.
  • Bin Storage Capacity: 510 L.
  • Condenser Heat Rejection: 14,000 BTU/hr .
  • Refrigerant: R452A.
  • Ambient Operating Temperature: 10°C to 43.3°C.
  • Electrical Connection: Hardwire.
  • Required Water Pressure: 96.5 to 579.2 kPa.
  • Water Consumption: 45.4 L per 45.4 kg of ice produced.
  • Water Inlet: 9.5 mm.
  • Drain: 19.1 mm.
  • Voltage: 220V.



General information
Voltage (V)
220
Country of Origin
USA
Manufacturer Warranty (Years)
2
Dimensions
Frequency (Hz)
60
Weight (kg)
177
Height (mm)
1966
Depth (mm)
2230
Width
762
Electricity
Power (W)
1700
Phase
1
Amperage (A)
16
Controls
Temperature Range (C)
0° to 40°C
Product information
Ice Maker Type
Stackable
Stackable ice makers
Ice Type
Flake
Condenser Type
Air Cooled
Compatible Ice Bins
570
Includes ice bin
Yes
Water
Water Source
Direct Connection
Drain Type
Gravity Drain
Sous vide machines
Max Production 24h
590
Water Consumption 24h
590
Manitowoc

Since 1964, Manitowoc has become a recognized brand in ice machines that produce large volumes of clean, and quality ice. They also offer several product lines that cover ice makers, ice bins, and combination ice machine and dispensers, that is why they have everything you need to provide your customers and employees with the best quality ice.

The company has a catalog that is packed with water and air-cooled ice machines, and all the compatible parts and accessories business could need. Manitowoc's product lines are ideal for hotels, restaurants, self-service areas, and many more.
