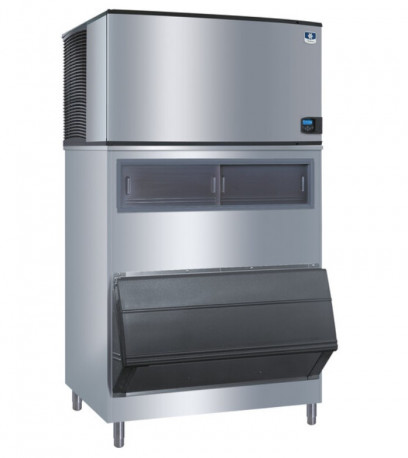

Manitowoc- IRT1900N-261+D970+JCT1500+RL35R410A - Ice Maker Regular Cube with Storage Bin With 400 Kg

A regular cube ice machine with remote cooling, producing up to 798 kg daily, paired with an 840-liter storage bin, a remote condensing unit, and a ready-to-install refrigerant line set. Ideal for restaurants, hotels, hospitals, and beverage plants with high and continuous ice consumption.

Features:

• Integrated system: ice maker, storage bin, condensing unit, and refrigerant line set.

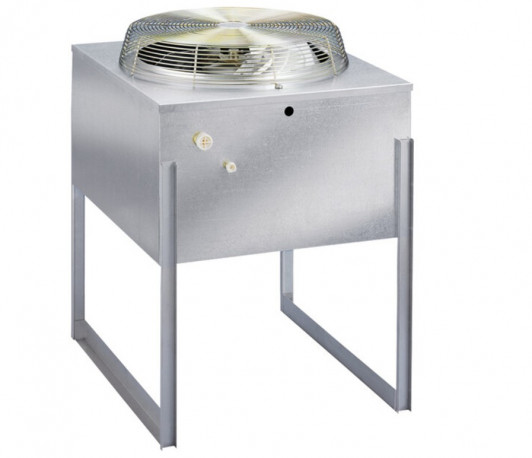

• Remote air-cooled condensing reduces heat and noise near the point of use.
• Acoustical sensing probe ensures uniform ice cube consistency.

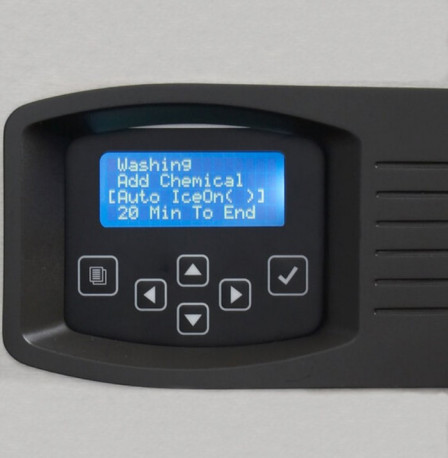

• Control display shows operating status and cleaning reminders.
• 24-hour self-diagnostics for preventive maintenance.
• Programmable production by time, volume, or bin level.
• Antimicrobial protection.
• Hinged front door for quick and easy cleaning.

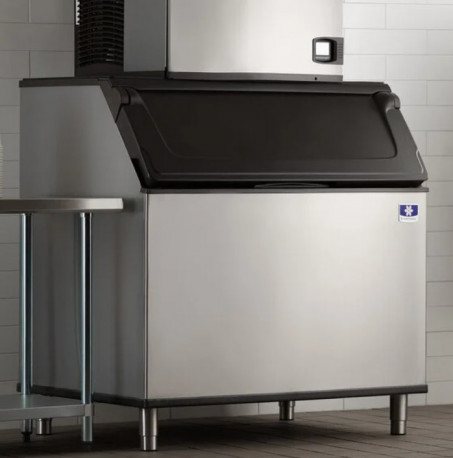

• Side grips and self-latching bin door that stays safely open.
• Foamed insulated bin door with secure self-latch.
• Sanitary ice scoop included with hand guard.
• Condensing unit can be installed up to 30 meters from the ice machine.

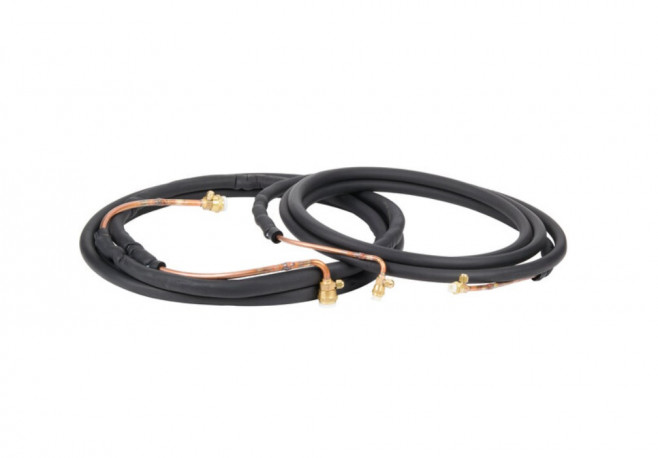

• Pre-charged R410A refrigerant line set for easy installation.

Technical Specifications:

• Width: 1219 mm.
• Depth: 864 mm.
• Height: 2019 mm.
• Weight ice machine + condenser unit : 500 kg.
• Current: 17 A.
• Condenser Unit Current: 1 A.
• Power: 3740 W.
• Daily Ice Production: 798 kg / 24 hr.
• Bin Storage Capacity: 840 L.
• Ice Type: Regular Cube‚  28.6 x 28.6 x 22.2 mm.
• Refrigerant: R410A.
• Ambient Operating Temperature: 4.4°C to 43.3°C.
• Condenser Unit Operating Temperature: -28.9°C to 48.9°C.
• Electrical Connection Type: Hardwired.
• Required Water Pressure: 137.9 to 551.1 kPa.
• Water Consumption: 75.7 L per 100 kg of ice produced.
• Water Inlet: 9.5 mm.
• Drain: 19.1 mm.
• Refrigerant Line Length: 10.67 m.
• Voltage: 220V.
